Product parameters
| Model | BRC305C90012 | Sensitivity | 94.5 dB@1kHz |
| Configuration | Single | MPO@Peak | 115.5 dB |
| Dimension | 5.02*2.69*1.94mm | Test Voltage | 94 mV |
| Frequency Range | High Frequency | Applications | Earphone |
| DCR | 12.5 Ω | Acoustic Coupler | 10*1mm tubing into IEC711 |
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.
Appearance Size

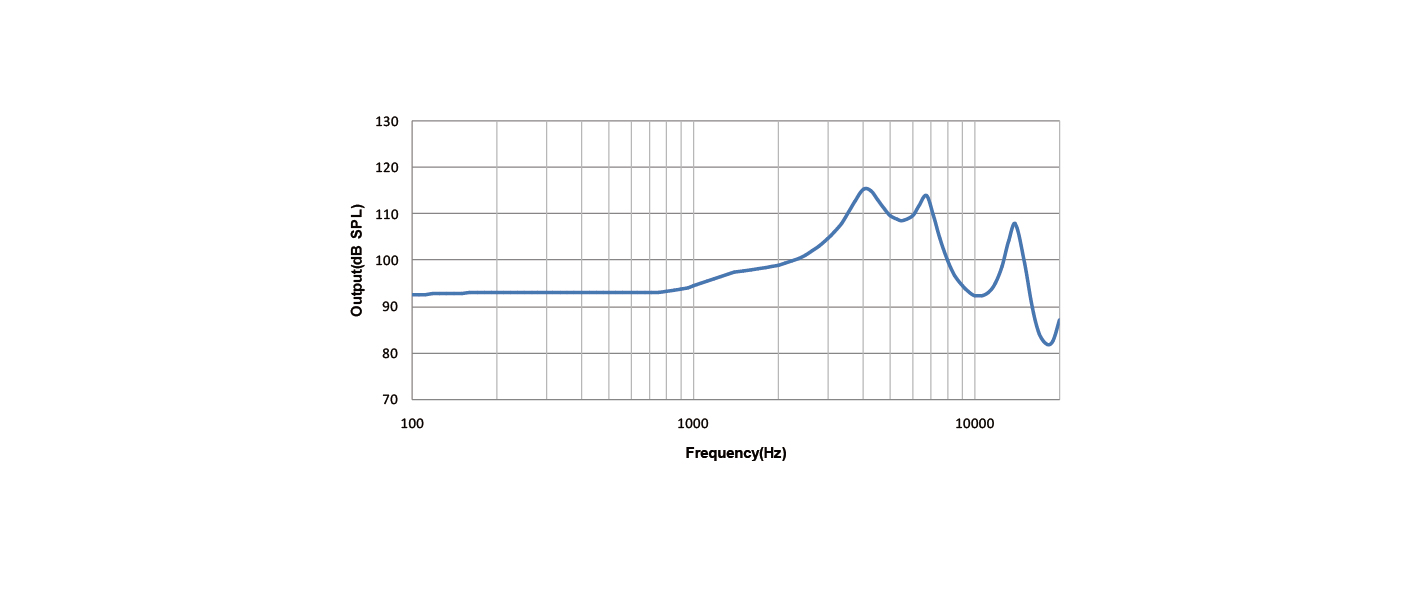

Frequency curve
