Product parameters
| Model | BSP110UAB16 | Sensitivity | 110dB @1000Hz |
| Impedance | 16Ω | F0 | 390±30Hz |
| Bandwidth | 20~20000Hz | Nominal drive | 126mV(1mW) |
| Rated power | 5mW | Coupler | IEC711 |
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

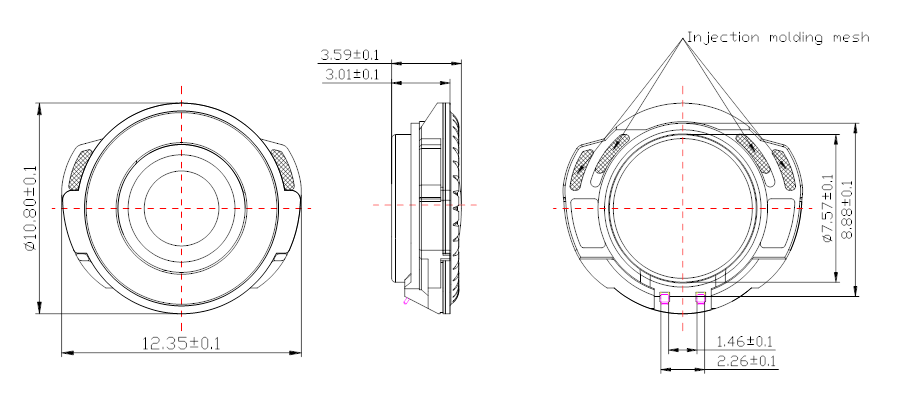

Appearance Size

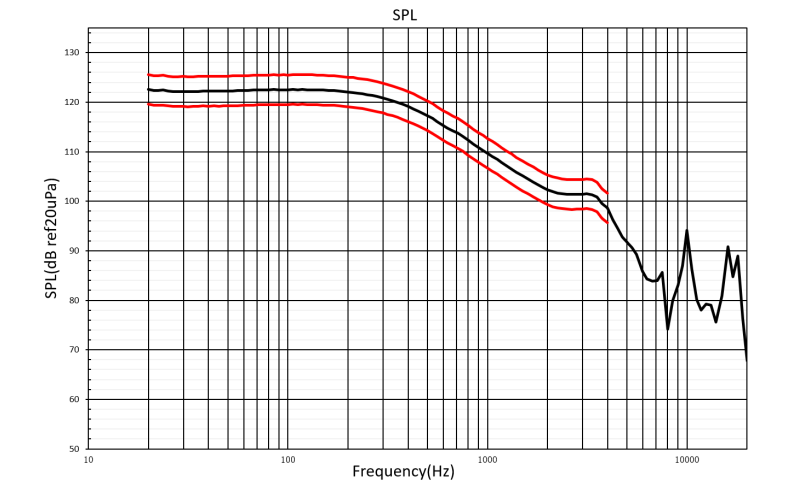

Frequency curve
