Product parameters
| Model | BRC283C90013 | DCR | 12.5Ω |
| Sensitivity | 117.0dB@1000Hz | MPO @ peak | 127.0dB |
| Nominal Drive | 150mV RMS | Acoustic Load | Tubeless fifixture into IEC711 |
| Port Location | 3 tubes | Back vent | NO |
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

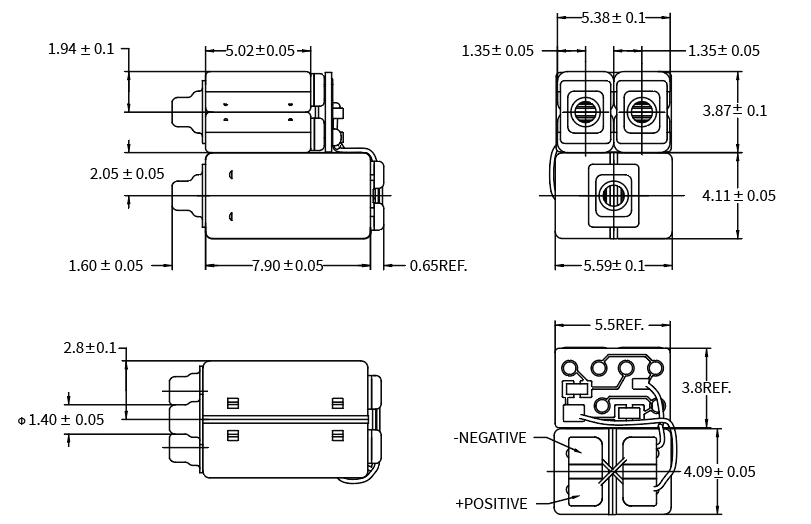

Appearance Size

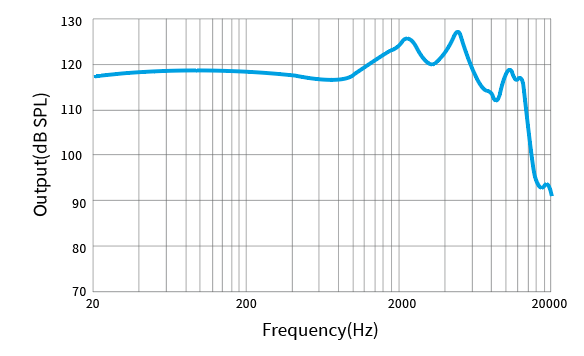

Frequency curve
