Product parameters
| Model | BRC206C70003 | DCR | 3.0Ω |
| Sensitivity | 106dB@1000Hz | MPO @ peak | 126.0dB |
| Nominal Drive | 94mV RMS | Acoustic Load | tubeless fixture into IEC711 |
| Port Location | 2 tubes | Back vent | YES |
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

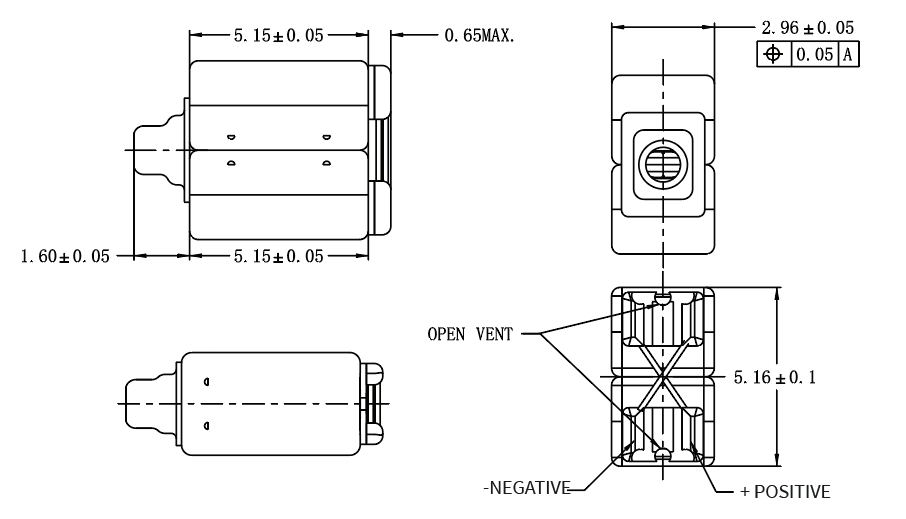

Appearance Size

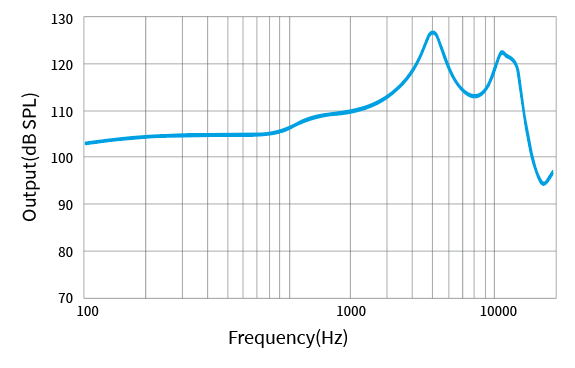

Frequency curve
