Product parameters
ModelBRC231C80011DCR11.0Ω
Sensitivity113.0dB@1000HzMPO @ peak117.0dB
Nominal Drive120mV RMSAcoustic Load10.0mm x 1.0mm tubing into IEC711
Port Location12SBack ventNO
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

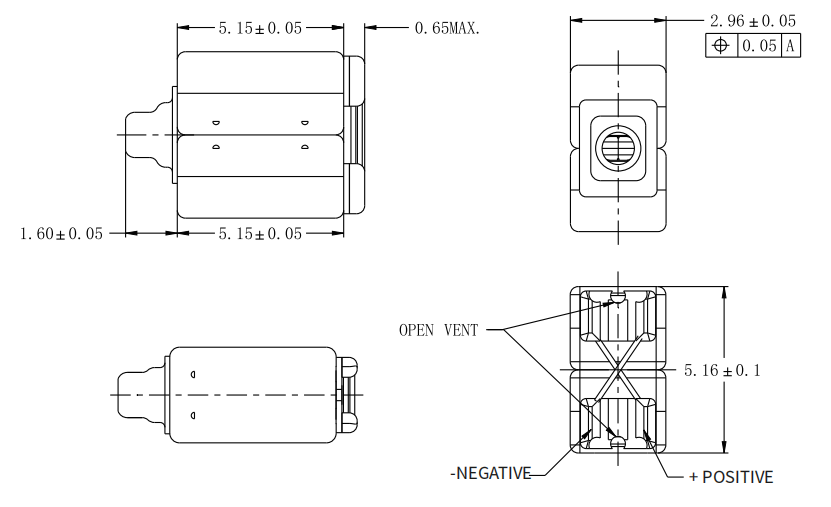

Appearance Size

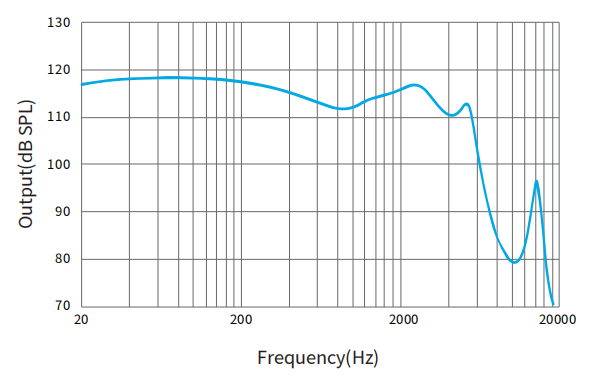

Frequency curve
