Product parameters
| Model | BRC215C90035 | DCR | 70.0Ω |
| Sensitivity | 107.0dB@1000Hz | MPO @ peak | 117.5dB |
| Nominal Drive | 140mV RMS | Acoustic Load | 10.0mm x 1.0mm tubing into IEC711 |
| Port Location | 12S | Back vent | NO |
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

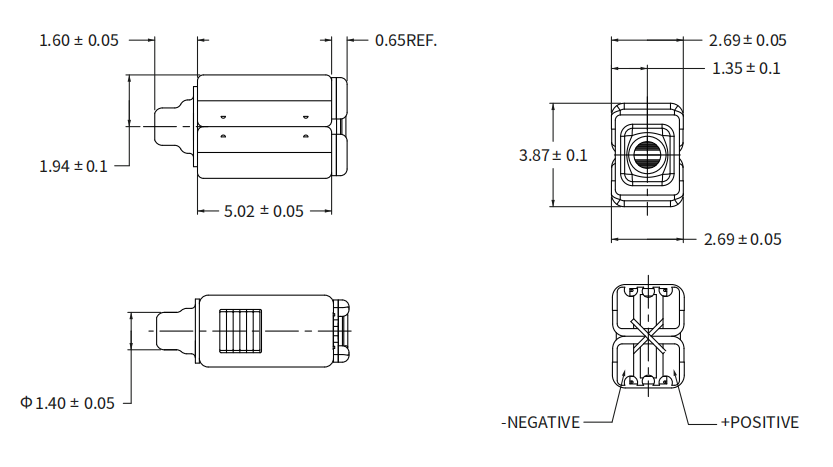

Appearance Size

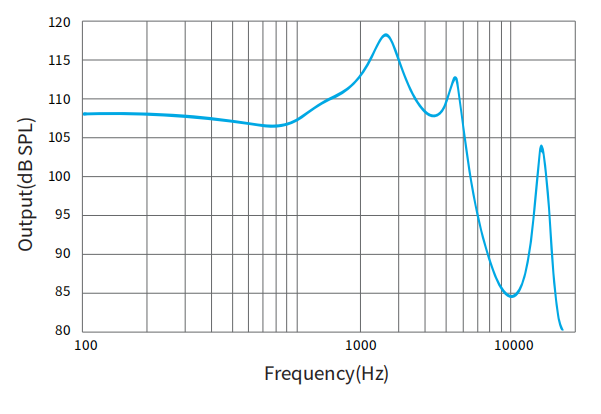

Frequency curve
