Product parameters

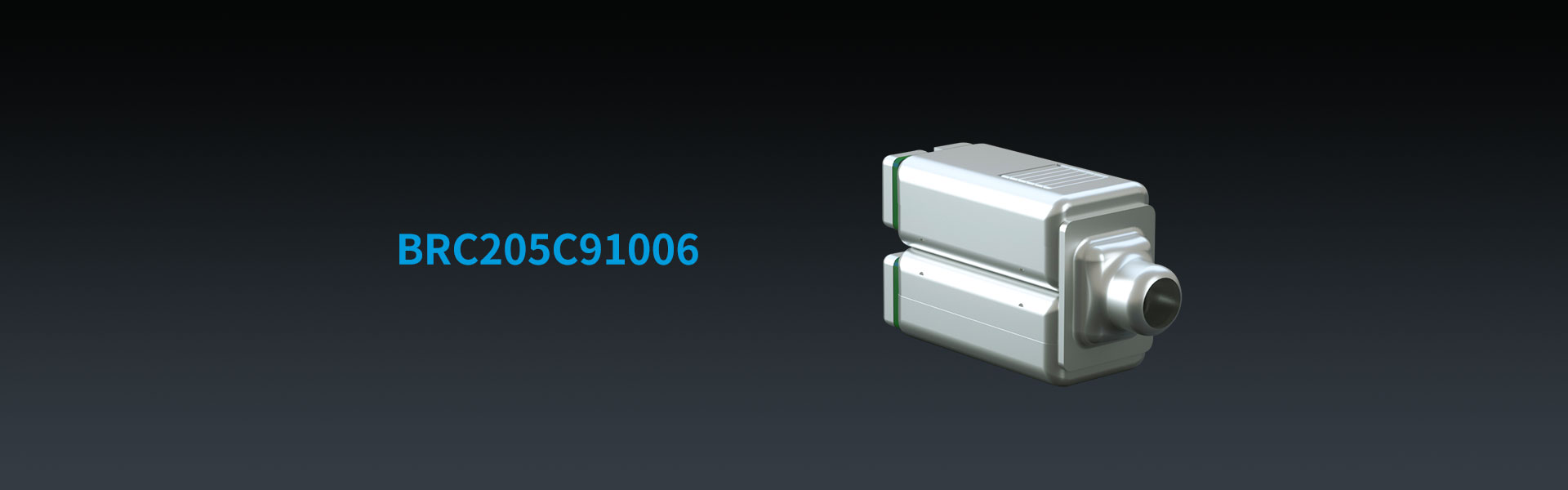

ModelBRC205C91006DCR6.3Ω
Sensitivity100.5dB@1000HzMPO @ peak123.5dB
Nominal Drive94mV RMSAcoustic Load10.0mm x 1.0mm tubing into IEC711
Port Location12SBack ventNO
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

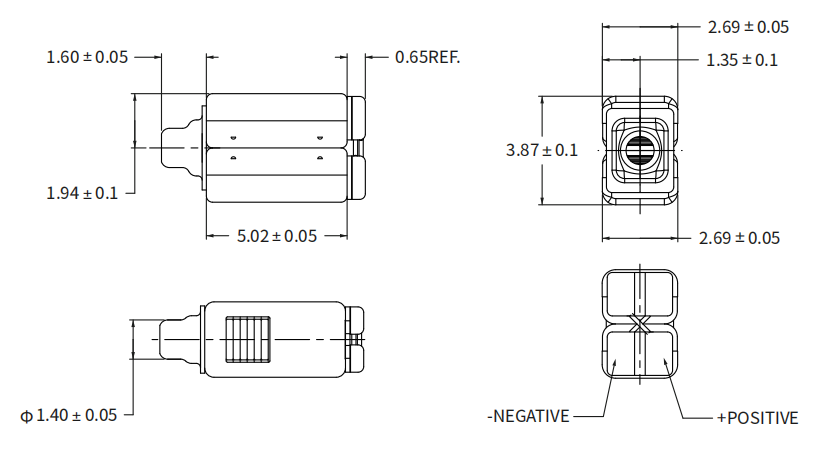

Appearance Size

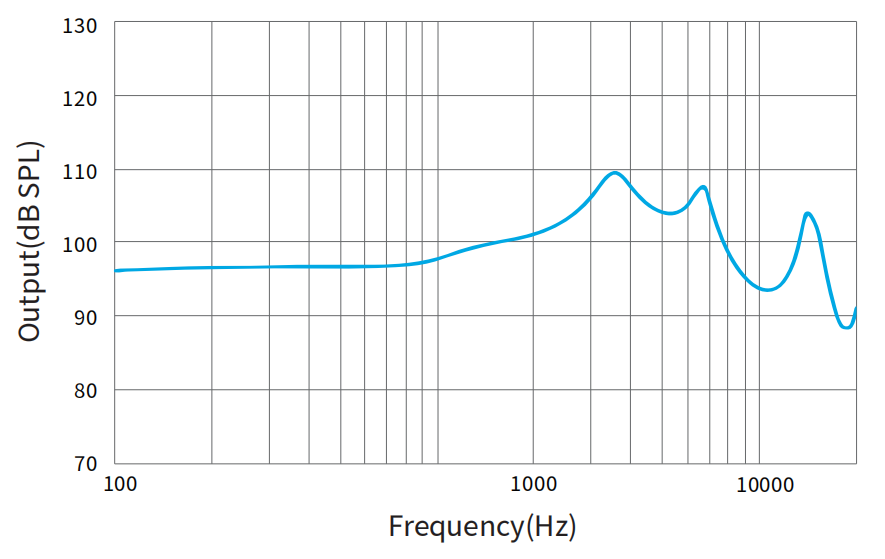

Frequency curve
